DreamLab

1.Reception #

Reception

There are many ways the exams can be received:
-Manual
-LAN
-PenDrive
-DiskDrive
-WEB

The “Not received” means that the test is not received, the exam will be automatically closed with the option “not received” and ready to go back to the center.











RECEPTION FROM BARCODE

HOW TO USE









































In laboratories  where dysalab is used to make the viral load:
after accepted the sample with dysa, the label with the dysalab identification code must be printed and attached to the prescription sheet printed by dreamcen.

At this point, the acceptance must be done with dreamlab using the barcode function

It is first necessary to scan the dysalab barcode and then the 3 barcodes that are printed by dreamcen in the prescription form.
In this way the dysalab identification code will also be acquired by dreamlab and can later be used to automatically import the results.

Select “Barcode”

Scan on the dysalab barcode you have on the dreamcen prescription sheet (it start with PDM…)

DISALAB label will be showed to signaling that the dysalab code was recognized
You can continue to scan the other barcodes

until the sample is accepted



















Sì Non Suggerire  la  modifica

1.1.Formulary #

 Formulary

Patient NID: If not selected a Dream center it will be disabled and filled with a NID calculated.
less Than 5 years: not editable field
Age: not editable



In the tab_pazienti table, will be updated only:
-Nominative, Family Name, reference, Date of Birth, telephone, Actually pregnant, beastfeeding, agreemntcontract



The formulary is available in:
-Management Viral Load
-reception



Sì Non Suggerire  la  modifica

2.Work memo #



Filter has subfilter show calendar use calendar date Check Today
Hemo_CD4_Bio  X  X
Hemogram FBC  X  X
Biochemistry  X  only when use subfilter
CD4  X  X
ProtUR  X  X
TB  X  X
HIVdna X Today  X
CV X  Today  X



Sì Non Suggerire  la  modifica

3.Exams #

Exams

In Exams section is possible to filter the exams based on date range, and see the details.

The options “rejected” defines the rejection function from machine and the “not received”¬† defines the exam as not received .
The selected exam will be automatically closed with the selected option option and ready to go back to the center, you need to select the exam and select the proper option to change the status.

Sì Non Suggerire  la  modifica

4.Exam #





Enter values HIVDNA store
Enter vlues VL store
Go to patient’s detail
Save
Cancel / Reload values
Delete prescription















The option “rejected”¬† defines the rejection function from machine,¬† the exam will be automatically closed with the option “rejected” and ready to go back to the center.







LOG
In the LOG button, it’s possible to see the list of operations involved in the exam

Legend:

Command Description
CHCL_insert CHCL inserted
HEMO_Insert HEMO inserted
TB_Insert TB inserted
VL_Insert VL inserted
VL_Sign VL signed
VL_UnSign VL Unsigned
CD4_Insert CD4 inserted
HIVDNA_Insert HIVDNA inserted
HIVDNA_Sign HIVDNA signed
HIVDNA_UnSign HIVDNA Unsigned
CHCL_Insert_MC insert from machine BioSpinLab
HEMO_Insert_MC insert from machine HemoBeckman
CD4_Insert_MC insert from machine CD4CD8
VL_Insert_MC insert from machine ViraLoad
HIVDNA_Insert_MC insert from machine Hivdna











Sì Non Suggerire  la  modifica

4.1.Chemistry #



It’s possible to assign for every exam a value by checking the label

the OK checkbox is enable only when one of the exams will be checked, then it will be possible to sign it, unchecking the OK automatically delete the signature

Sì Non Suggerire  la  modifica

4.2.Hemogram #

Sì Non Suggerire  la  modifica

4.3.Molecular test #

Sì Non Suggerire  la  modifica

4.4.Drug resistance #

Sì Non Suggerire  la  modifica

4.5.TB #

Sì Non Suggerire  la  modifica

4.6.SARS-CoV-2 #

Operating procedure for SARS-CoV-2 Dream Lab section

RECEPTION:

To proceed with the insertion of the SARS-CoV-2 samples into the Dream Lab, you must access the “Reception” section.

In the left column you must select the center of origin of the samples.

At this point click on “New Reception”.

Manual acceptance is required.

First, it is necessary to check whether the patient is already present in the Dream Lab database.
To do so, click on the “Search” button to activate the “Search Patient” search field. Here you can use 4 search fields,
then clicking the “Search” button below the search fields. If the patient is found, it is necessary to verify that the data correspond to that of the SARS-CoV-2 sample before proceeding, in order to avoid patient exchange errors.

If the patient is not present in the database, click on the button and fill in the necessary fields.

Once the patient has been identified or created, check the SARS-CoV-2 box in the “Prescription” field below.

At this point you need to save the prescription with the “Save” button .
In this way the prescription will appear in the left column and a NID is assigned to the sample.
Once acceptance of all SARS-CoV-2 samples has been completed, the list must be saved with the “Save” button .

At this point, reception has ended.
You can find all the accepted samples in the SARS-CoV-2 section of the ‚ÄúHome‚ÄĚ, waiting for a result.



INSERTING RESULTS:

To insert the results, you must go to the SARS-CoV-2 section of the ‚ÄúHome‚ÄĚ and search through the NID for the sample whose result you want to insert.

In the result dropdown you can choose between POSITIVE, NEGATIVE, INDETERMINATE, NOT PROCESSABLE, <LDL,> HDL.

Furthermore, if you select POSITIVE, the possibility of entering a numerical value will be activated (if a test is quantitative).

In the case of a quantitative test with a numerical value, it is also necessary to select the method you used.

Once the result has been entered, click OK, sign, save and print the exam.

FINDING THE STATISTICS:

There is a dedicated section for SARS-CoV-2 in the EVIDENCE section, where you can find information on the tests performed and pending.

Sì Non Suggerire  la  modifica

5.Configuration #

5.1.Data #

The Data section is divided in several sub sections:+

-Centers
-Responsables
-DbInfo

Centers

IDcenter
Name Center’s name
Center code
Min_code  ministerial code
Province
District
Telephone
eMail
Dream   is a DREAM center
Manual
LAN   the center is allowed to manage operations by LAN
Disk
WEB  the center is allowed to manage operation by web service
EnableID
Printer  is allowed to print on the printer
PrintPDF  is allowed to print on PDF (the pdf directory is set on dbInfo at ReportPath parameter)
Fax



DbInfo



BioSpinlab
CD4CD8
CENTER_ PiePag
CENTER_ PiePag1
CENTER_BC_DB_Name
CENTER_BC_DB_Source
CENTER_DBPath
CENTER_Intesta0
CENTER_Intesta1
CENTER_Intesta2
CENTER_Intesta3
CENTER_KS_DB_Name
CENTER_KS_DB_Source
DB_box   mdb file path
DB_IDENTITY
DB_NAME
DB_SA_PASSWORD
DB_VERSION
DIR_Allegati  path to save attachements
DREAMBKP_FORCETOTAL
DREAMBKP_RANGE
DREAMBKP_TOTESTRAZIONI
HemoBeckman
HemoSysmex
LAB_ADMIN_PASSWORD
LAB_CONF_PASSWORD
LabMinCode
MotiviPrescrizione
PathCD4CD8
PathDoc
ReportPath  path to save PDF file
ReportPathPNid ¬†the PDF file is saved without the folder named as the patient’s NID
SERVICE_TYPE ¬†(‘LAB’,’CEN’) defines the service type
Sysmex1000
TB_Name
TestHIV1_Name
TestHIV2_Name
TestHIV3_Name
TestHIV4_Metod
TestHIV4_Name
ViralLoad_Metod
ViralLoad_MetodXX
ViralLoadType
WEBaccIP ¬† web service IP ( must end with ‘/’)
WEBaccPage   page that contains web service
WEBaccPass   password to use web service
WEBaccUser  username to use web service
Sì Non Suggerire  la  modifica

5.2.Export #

La procedura di export di divide in 2 sezioni:
1) Per cartella, selezionando la directory o disco remoto
2)¬†Per penna USB, dove il programma individua la prima chiavetta e gestisce l’export

Entrambe le procedure successivamente eseguono queste operazioni:
1)verifica file .ini esistente
nella directory selezionata deve trovarsi il file con estensione .ini contenente le richieste da esportare
il nome del file deve avere il nome nel formato: “DREAM_TRS_” codiceCentro “.ini”, dove codiceCentro √® l’ultima parte nella casella a discesa che distingue il codice del centro selezionato.
2)Copia locale
viene letto il file XML dalla cartella, il nome è scritto nel file .INI, il file viene gestito inizialmente in locale tramite il file tmp.xml decriptandolo,
3)Filtro XML
viene letto il file filtrando per DataInvioLab che sia vuoto o NULL
4)aggiornamento file XML del centro
per ogni IDPrescrizione del file XML viene impostata la dataInvioLab alla data odierna  in modo da non ripetere le operazioni una seconda volta.
5)creazione XML
creazione file XML temporaneo EXTMP.xml dove vengono salvate le tabelle TrsParam e TrsPrelievi, in cui viene esportata la tabella Edesami ed EsamiEx e riempiti in base alla IdPrescrizione del file Originale, e poi salvato nella directory in modo criptato
I riferimento al nuovo file xml sono nel nuovo file .INI
I record dei prelievi vengono valorizzati in base ad una query su Esami, vengono filtrati in base ad: (laboratorio 3247)
idPrescrizione , DataGeneralpR deve avere un valore, BoolCompletato valorizzato, e ListaDef esame comprende uno di: (12,13,20)
nel caso viene trovato un record, viene impostato boolRichiesto a True nel DB laboratorio

Sì Non Suggerire  la  modifica

5.4.MaxMin values #

MaxMin Values
This form shows the range values for each exam

AgeMin and AgeMax are based on days and represent the age range, 7000 is general for adult  , the operator can add on more row with a new range
Sex can have: U for unisex if the range does not have any difference for sex range then M male F female
CategoryAB is a definition for the age, a=adult b=children
IdValuesNormal is a internal ID reference, not mandatory
IDesame The exam name



































To add a new row you just need to write down the last rown on the grid
To edit tap double click on the value to change





Sì Non Suggerire  la  modifica

6.Database #

tabelle di trascrizione

Table Esami   use
 BoolEsame1  if is a study
 BoolEsame2   PCR#
 BoolEsame3   not used
 BoolEsame4   FdLStampato
Esame42 StatoTARV
Esame4 Tipo di raccolta (venosa, digitale) [TIPOprelievo]
F_TipoCampione Tipo di campione (PLASMA,DBS), come per Dat_dbs



IDPaziente
IDPrescrizione
IDFirma
IDCentro
NID
Data
DataGeneralPR
DataCViralPR
DataGeneralEmail
BoolCViralPR
BoolHemogramma
Leuco
Eritro
Hemo
Hema
VGM
HGM
CHGM
Plaq
LYM
MXD
NEUT
LYM2
MXD2
NEUT2
MON
MON2
EOS
EOS2
BAS
BAS2
BoolCreat
Creat
BoolGlic
Glic
BoolBlTot
BlTot
BoolBlDir
BlDir
BoolGOT
GOT
BoolGPT
GPT
BoolAlbu
Albu
BoolFerro
Ferro
BoolFerritina
Ferritina
BoolElettroliti
Na
K
Cl
BoolHIV
HIV
TestHIV1
TestHIV2
TestHIV3
BoolCD4_CD8
CD4
CD4proc
CD8
CD8proc
CD4_CD8
BoolCViral
CViral
BoolOKCviral
BoolPlasmodium
Plasmodium
BoolAlfaAmilasi
AlfaAmilasi
BoolColTot
ColTot
BoolColHDL
ColHDL
BoolTrig
Trig
BoolEsame1
Esame1
BoolEsame2
Esame2
BoolEsame3
Esame3
BoolEsame4
Esame4
Note
BoolInviato
BoolCompletato
BoolRichiesto
BoolDaRipetere
DataCompletato
DataInviato
ProtocolloCD4
GateA
GateB
GateC
GateI
Time_Stamp
ReceptionType
BoolBK
BK
BoolEsame11
Esame11
BoolEsame21
Esame21
BoolEsame31
Esame31
BoolEsame41
Esame41
BoolEsame12
Esame12
BoolEsame22
Esame22
BoolEsame32
Esame32
BoolEsame42
Esame42
BoolHIVDNA
HivDnaMetodo Metodo per HIVDNA
HivDnaMetodo2 metodo per CV
BoolAllegatiResistenze
Resistenza
BoolTubercolosi
ChCLDataOK
ChCLDatastampa
HemoCd4DataOK
HemoCd4Datastampa
TestMolecolariDataOK
TestMolecolariDatastampa
HivGenotipoDataOK
HivGenotipoDatastampa
TBCDataOK
TBCDatastampa
HIVDNADataStampa
HIVDNADataOK
IdFirmaVL
IdFirmaEmatochimica
IdFirmaHivDna
IdFirmaHIVGenotipo
IdFirmaTBC
FlagRicevutaConsegnato
Sì Non Suggerire  la  modifica

7.Report #

7.1.Report evidence #

Evidence Report

The report shows the total NIDs based on the requested period.
There are 3 main column details:
Month: Shows the total based in the previous month
Previous month: Shows the total based in the previous month of the column “Month”
Selected Period: Shows the total based in the selected period before to lunch the report (1 month, 6 months , 1 year)

Every column has his own percentage based on the total, and the average for the last period column.

The report shows the NIDs based on the value of the following exams:
Hemogramma, CD4, GOT, GPT, Clicemia, AlfaAmilasi , Creatina, Ferro, BilDir, BilTot, Proteinuria, Albumina, Col Tot, Col HDL, Trigliceridi, Plasmodium, Ferritina, Elettroliti, Viral Load, Tubercolosis.
For every exams are showed the followng data:
Total requested (NID), not processed, validated without valiue, validated with value, not validated, signed, printed.









Statistics





this section shows the statistics about:

-time spent exam GR exams in the month
-exams printed in the month and requested in the same month
-exams printed in the month and requested in the same month
-examinations printed in the period (total printed only but not necessarily required in the same month)
-CVs printed in the period and requested in the same month (partial)



Sì Non Suggerire  la  modifica

7.2.Schema filter #

Schema filters

Descrizione BoolRichiesta Valore OK(Validati) Firma Stampa
Requested Look down
Not processed Look down NULL NULL
Not validati Look down has Value NULL
Validated no value Look down Null Has Value
Validated with value Look down Has value has Value
Signed Look down Has value Has value Has value Null
Printed Look down Has value Has value Has value Has value



Descrizione BoolRichiesta Valore OK(Validati) Firma Stampa
Emogramma  BoolHemogramma  Hemo HemoCd4DataOK IdFirmaEmatochimica HemoCd4DataStampa
 CD4 BoolCD4_CD8 CD4 HemoCd4DataOK IdFirmaEmatochimica HemoCd4DataStampa
 Biochimica (for every bool) (for every bool) ChCLDataOK IdFirmaEmatochimica ChCLDataStampa
 Viral load BoolCViral CViral OR Esame2 TestMolecolariDataOK IdFirmaTBC TBCDataStampa
 Hivdna BoolHIVDNA (?) request hivdna HIVDNADataOK IdFirmaHivDna HIVDNADataStampa
Rapid Test  BoolHIV (?)request rapid test same biochimica biochimica biochimica



total calculation

NID BoolCompleted
 Total Exams  All
Totale Requested  not Null
 Non completed   False
Printed more times BoolCViral = false OR BoolHemogramma = true OR BoolCreat = true OR BoolGlic = true OR BoolBlTot = true OR BoolBlDir = true OR BoolGOT = true OR BoolGPT = true OR BoolAlbu = true OR BoolFerritina = true OR BoolHIV = true OR BoolCD4_CD8 = true OR BoolPlasmodium = true OR BoolAlfaAmilasi = true OR BoolColHDL = true OR BoolTrig = true OR BoolFerro = true
 Ematochimica not signed(not completed)  False BoolCreat =true) OR (BoolGlic = true) OR (BoolBlTot = true) OR (BoolBlDir = true) OR (BoolGOT = true) OR (BoolGPT = true) OR (BoolAlbu = true) OR (BoolFerro = true) OR (BoolFerritina = true) OR (BoolAlfaAmilasi =true) OR (BoolColTot = true) |(BoolColHDL = true) OR (BoolTrig = true)) OR BoolHemogramma = true OR BoolCD4_CD8 = true) and ((BoolCompletato =false) and (string.IsNullOrEmpty(IDFirmaEmatochimica)
 Ematochimica Signed but not printed True  IDFirmaEmatochimica =Not null




In this section, we can filter all data
The Filter¬† FROM and TO doesn’t have a date because the report will automatically show all result from the first day of the month to the last day of the selected ending date.



Sì Non Suggerire  la  modifica

8.Machine connection #

To receive data from machine device like (Horiba, sysmex etc..) we use a certified program :”Advanced TCP/IP” released from AGGsoftware.
This program can keep listening from TCP door all data sent and add into SQLserver.



This program can show a log and history of all data sent







The configuration needs to set the Parse method, in this case we can select ASTM (or ASTM tcp) then set that we want it to export the data selecting the checkbox

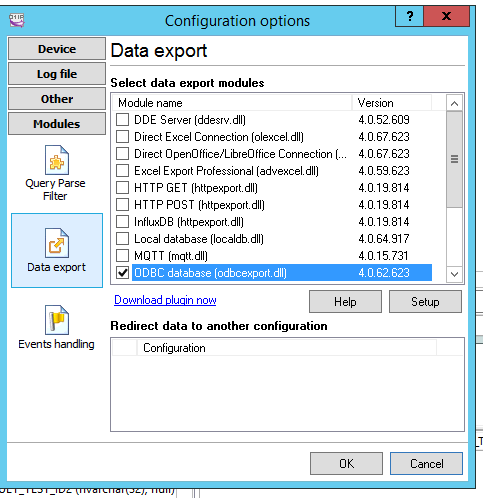

The Configuration of Data export allows multiple choice, to choose SqlServer we can select ODBC or SqlServer dll,
in this example we use ODBC

































To do that we need to create a ODBC connection, we can call “TCPListener” that targets SQLserver



























Than going back to TCP/IP listener and selecting “IMPORT” it can recreate all table structure for the insert statement.
Note that he cant manage key field, better remove , here we have ID field that is an autonumber.













































































if you have SqlServer connection then select the … button and add the SQL statement to recreate your query,
the file is located in FTP on the DREAM server “dreamlab\machines\[Laboratory name]”

































In the machine we have to set ASTM method to export data and TCP  port



Sì Non Suggerire  la  modifica

9.Evidence #

In this section we can have different ranges of exams and queryes
All exams
Haematochemistry
Hemogramma
CD4
Biochemistry
Viral load
HIVdna
Sars-cov-2
TB
QueryVL.



All query can be filtered for the filter section below
This can be for Center, Period , range of date and date of (arrival , execution, reception)





















QueryVL
Is a special query requested that contain personalized field on result
This QueryVL will show results of exams who have VL prescription where the value is null.
This query can be filtered for the parameters on the form.
When exporting the results via excel DreamLab will use a template in the support folder: VL_LAB_updated.xls, and will write into “DATA” sheet, this file already contains the filters in “PIVOT” sheet that can be used to filter the results.
This function uses an Interop Excel dll, it means excel must be installed on the computer.







In the Biochemistry query, a form will be showed asking to select the exam from a drop down selector
Like the queryes above even here will maintain the filter for dates

Sì Non Suggerire  la  modifica

10.HPV #

HPV
HPV can help to manage the hrHPV DNA tests.





The result of HPV is divided in multiple combobox results who can have “Positive,Negative,indeterminate” as a result, in case of invalid is possible just to enter the description



If the file “HPV_template” exists in template folder, a PDF print button will be showed on the form, this function will allow to use a template for each different country, he just replace the placeholder in the PDF with the correct value, below an example of PDF template.

Sì Non Suggerire  la  modifica
Help Guide Powered by Documentor
Suggerire  la  modifica
